Complete Ultra HD IP 4.0MP (2560 x 1440) 16 Camera POE System
Available Stock: 50
  • £1929.00 (£2314.80 inc vat)
  • Sale £1679.00 (£2014.80 inc vat)
  • Save £250.00
Hard Drive Size
32 DVR Upgrade
Camera Options
Deep Base / Junction Box Option
Cable Length
Additional Ethernet Switch Option
Monitor Options


Please feel free to call James or Kyle on 01748 811991 for free no obligation advice. We are here to help!



Complete 4.0MP 16 Camera Full HD IP System


2560 x 1440  Ultra HD Resolution


Various camera options.


The TYT NVR supplied with this kit will also support 8.0MP


The TYT NVR comes without a hard drive fitted as standard. Please select the size of hard drive you require. The NVR will not record without a hard drive.


Also option to upgrade to the 32 Channel NVR 8MP Full HD Real Time so additional cameras and/or hard drive can be added in future if required. Only £240.00


A complete 4.0MP IP CCTV system comprising of: 16 x Omnivison OV4689 4.08 mega pixel IP Mini IR ball dome cameras fitted with 18 pieces of 14µ IR LEDs for night vision viewing/recording. The cameras are weatherproof and suitable for outdoor or indoor use. They are colour during day time and switch to black and white at night to see in the dark. They are fitted with IR cut filters for crisp clear night time images. Full OSD set up allows you to adjust: white balance, backlight compensation, digital noise reduction, wide dynamic range, shutter speed, privacy zones etc. For perfect image set up in every environment. Fitted with a wide angle 3.6mm megapixel lens giving a field of view at 82° These new OmniVison OV4689 4.08MP cameras are the very latest in IP analogue CCTV technology.

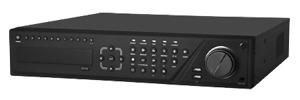

 TYT IP CCTV NVR 8MP 16 Channel Full HD Real Time Can record up to 8MP resolution on all 16 channels. Hard Drive (Options for 1TB to 16TB). This NVR supports remote viewing over the internet or on mobile devices. HDMI 4k video output, Motion detection recording. Full networking and remote viewing/playback, also compatible with most smart phones for remote viewing. Back up to USB stick, external hard drives, or via network. Duel stream technology to ensure fast, smooth transmission over networks. The NVR is operated by IR remote control or via a mouse.


This system comes with 1 x 16 port PoE switch (Power Over Ethernet) what this means is that you can now run just a single network cable from the PoE to your camera making installation very simple. The cable which would usually be CAT5 or CAT6 will transmit video signal and the power to the camera.


The NVR is extremely easy to network due it's P2P function. How does P2P work? Once you're all set up and have connected an ethernet cable to your router, you simply download an app called SuperlivePlus on your Android or IOS mobile/tablet which is free. After the app has downloaded simply scan the QR Code which is presented to you in the menu of the NVR.


The system also comes with 2 x 305m Box of CAT5E with 60 x RJ45 Crimps. There is a option for deep bases and junction boxes. these are to hide the connections from cameras. The junction boxes are best suited for the 3.6mm domes as the PoE block (a block inline with the camera lead) does not fit within a deep base.


With the PoE switches these powers the cameras, this is installed next to the DVR or can be placed anywhere on the network so you do not have to worry about having any mains sockets installed near the cameras. The Camera cable takes the power to the camera and also returns the video signal back to the NVR via the network.


There are options to change the cameras to different models in the Longse OmniVision 4MP CCTV Camera range. I.e. Varifocal IR ball domes in white or grey or V/F IR Bullet camera with different night vision ranges and angles of views. To view range of cameras please follow link below.



Longse OmniVision 4MP 3.6mm Mini Ball Dome 20m IR


Longse OmniVision 4MP 2.8-12mm Lens Ball Dome 30m IR


Longse OmniVision 4MP 2.8-12mm Lens Bullet 40m IR


Longse OmniVision 4MP 2.8-12mm Lens Bullet 60m IR


Longse OmniVision 4MP 6-22mm Lens Bullet 60m IR
