IP Analytic 5MP 2.8mm Fixed Ball Dome 16 Camera External PoE System

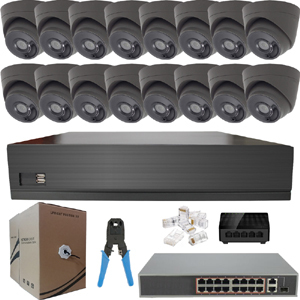

System Includes:
• 1 x Analytical IP 16 Channel 4K NVR 4HDD With A 4TB HDD
• 16 x Analytic 5MP IP PoE Fixed 2.8mm Ball Domes. H.265 Compression
• 1 x Black Box 16 Port PoE Switch With 2 Uplinks
• 1 x Tenda 5 Port Ethernet Switch
• 1 x 305M Box of CAT5E IP Camera Network Cable
When using this camera system, you have access to the camera analytics. The different features include Object Removal, Abandon Object, Exception Detection, Line Crossing/Tripwire & Intelligent Motion Detection, to read more information about these features please click here.
With using your NVRs with this camera you have the capability to create a more advanced CCTV setup by using the mentioned features. As you can imagine there is a massive variety of how you can customise each camera to each property/business.
The NVR has an external PoE switch, PoE is Power over Ethernet. This is when power and video signal is sent down the same cable from a switch or a NVR to a camera. The maximum you can send a PoE signal is 90m with out having to put any boosters in the cable. Having an external PoE switch as opposed to it being built in has advantages, you no longer need to run a cable from the camera back to the recorder, you can fit the PoE switch where it is the most convenient and connect camera cables to that instead. This method normally uses a lot less cable but does require a separate power source for the PoE switch.
Robust weatherproof construction, suitable for indoor/outdoor use. Fitted with third generation of dot matrix LED IR lights, small size and crisp night vision images with an infrared range of 20m. Universal ball dome style for easy mounting. Stunning 5MP images capture all the detail. Fitted with a fixed 2.8mm lens giving you a wide or narrow angle of view.
The 2.8mm 20m IR Ball Dome camera supports the OMNIVISION 5MP chipset, a well renowned chip. This camera will record at 5MP (2560 x 1960) resolution! Which is almost three times the resolution of high definition 1080p cameras (1920 x 1080 pixels). This unit allows recording at H.265 compression which uses 40% less bandwidth than H.264 but does not sacrifice image quality. (Click this link for more info on H.265)
This model Supports its own fully functional APP and web browser interface. You’ll have full control over the camera settings via Internet Explorer or Safari. This camera can record directly to a NVR or to cloud storage (Google,Dropbox) with motion detection email alert. The Analytic cameras are optimised for our Analytic Network Video Recorders.
Easy to install using Cat 5, Cat 6. The 5MP Ball Dome is PoE (Power over Ethernet) allowing you to only need to send one network cable to the camera for power and video transmission. The camera has a cable coming from the rear which has a RJ45 socket and a spare 12v DC socket for if you are not using the PoE feature.
